Safety Precautions
- Our product is designed to protect human beings from
the bird menace, Please
do not use it for any other purpose.
- Please do note that our product is designed keeping in consideration the weight of
pigeon, crow, eagle, etc., birds.
- Please don't lean against or lean any other object of a
considerable weight
against the net, since there
is a possibility of the net snapping.
- Please carry out the installation of the product after fully
ensuring installation safety.
When sufficient safety cannot be ensured about installation, please
do consult us.
- Be careful, not to hurt your eyes with the top of the 'L'
figure stick etc.
Pre-Installation Activities
- Please remove any dirt like excrement of pigeon from
installation place and make it clean and tidy.
- If the installation place is dirty because of excrement or other
things,
then the sufficient adhesive strength cannot be obtained.
- In case the dirt on the installation place contains oil, please wipe
off with alcohol, etc.
- When installing to the ceiling side, please use the installation stick
for convenience.
- Please check that the installation part is completely
dry.
Installation
of FEKUTO 45°
| (1) |
![NOWPRINTING[NOWPRINTING]](images/01.gif) Please
insert the B of 'L' character stick into A of connection plate and
press until
it fits in with a snap.
(The B of 'L' character stick with a line hole is inserted in the plug
mouth of both ends and a center among the plug mouths of a connection
plate.) |
| (2) |

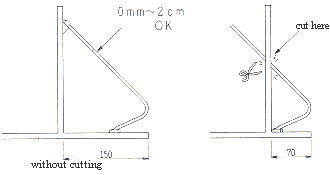

![NOWPRINTING[NOWPRINTING]](images/02.gif) The
length of an installation place is measured.
according to what was done in Step 1 to adjust the length. |
| (3) |
![NOWPRINTING[NOWPRINTING]](images/03.gif)
Only for A type (reverse birdcage type):
An installation stick is set to what was done in Step 2.
|
| (4) |

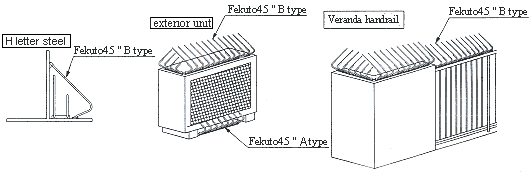

Completed FEKUTO 45° is installed at intervals of 3 cm
when the installation place is a plain surface
we recommend you to use a bond type for small installations
and for big installation please use "A bond type"
since it saves the installation time.
when the installation place is a curved surface
After temporary sticking about 3 sheets with temporary
adhesive tape at the bottom of the connection plate
using 'INSHU Lock", Wire tape etc. is used.
Please attach between 2nd and 3rd of "L figure stick" both
ends of a connection plate.
We can install tools separately, please place order after checking
the conditions at the installation place and the specific
installation customization to be adopted
1. Both sides adhesive tape
2. Reinforcement metal fitting.
3. Clamp
4. Anchor
5. Bond (Glue)
|
![NOWPRINTING[NOWPRINTING]](images/04.gif) |
|
| (5) After
installing of all "FEKUTO 45°" please check each
part and make sure that everything is correct. When you find
that at some
places there is a possibility of installed net dropping down, put
a wire etc., through the line hall of the 'L' letter
stick (with a line hole) and connect it with handrail etc. |
|
Now, installation of FEKUTO 45° is complete.
Please check whether there is any 40mm or more gap in any place.
Although, it is a non-anchor installation, in cases where the installation
base is extremely bad, use of anchor, nail, clamp, etc., may be necessary. |
|
|
